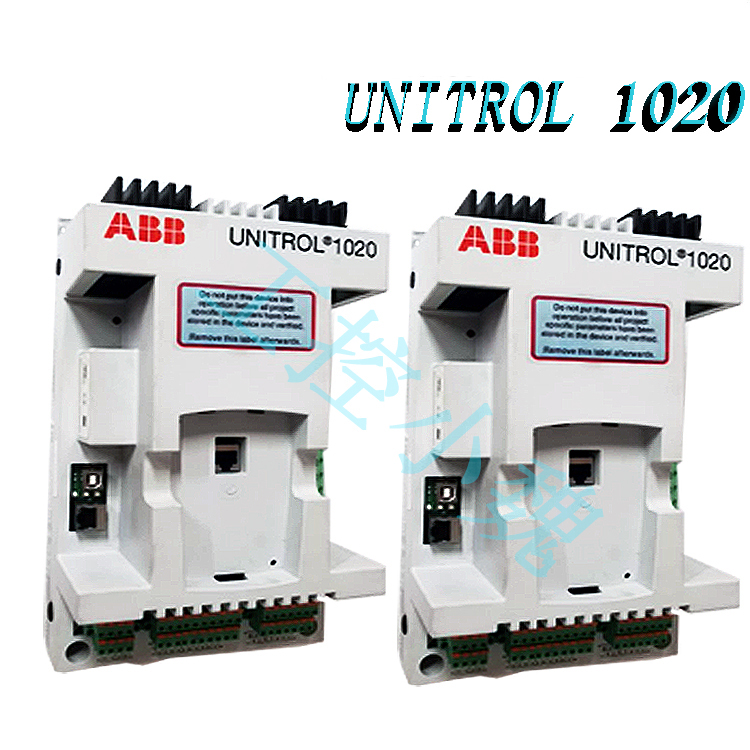

UNITROL 1020 UNS0119A-Z,V1 3BHE030579R0003(1)

UNITROL® 1010 is a powerful and compact Indirect Excitation System for small and medium synchronous generators and industrial machines fully certified according to DNV and UL standards.

Its advanced microprocessor technology and IGBT semiconductors allows for current output up to 10 ADC for continuous operation.

With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, UNITROL 1010 provides high performance in a wide range of temperature and vibration conditions.

Deployed in 20,000+ installations all over the world, the UNITROL® 1000 Series applies to power generation plants, marine electrical propulsion and auxiliary supply, diesel electric locomotives, harbor cranes & mining trucks

UNITROL® Excitation Systems

  Excitation systems are a key component in many power generating units used by plant owners and operators to achieve reliability of operations, stability and fast transient response of their assets, as per grid requirements.

  To respond to diverse needs across power generation and non-power generation applications, ABB has developed the UNITROL 1000 and UNITROL 6000 series.

  With more than 30,000 units in operation, UNITROL solutions are part of a wider portfolio of automation and electrical systems, rotating machine control, instrumentation and advanced digital services to serve all power generation facilities.
UNITROL® 1020

UNITROL 1020 UNS0119A-Z,V1 3BHE030579R0003

UNITROL 1020 is the voltage regulator intended for small and medium synchronous generators and industrial machines. It combines performance control and power circuits with a simple mechanical design provides high performance in a wide range of temperature and vibration conditions .

With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, this automatic voltage regulator (AVR) is manufactured using the most advanced microprocessor technology and IGBT semiconductors allowing current output up to 20 ADC for continuous operation.
UNITROL® 1010

UNITROL® 1010 is the Indirect Excitation System for small and medium synchronous generators and industrial machines. Its advanced microprocessor technology and IGBT semiconductors allow for current output up to 10 ADC for continuous operation.

With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, UNITROL 1010 provides high performance in a wide range of temperature and vibration conditions.
UNITROL® 1005

UNITROL 1005 is the smaller component of the family designed for low-end excitation application with maximum excitation current up to 5 ADC.

Like all UNITROL1000 products, UNITROL 1005 is based on the same target software source code and share the same simulation models that makes it very suitable for demanding grid code applications.
Included in the package is CMT1000, the tool for focused and fast commissioning.
UNITROL® 1000 Flex Systems

UNITROL® 1000 FLEX Systems are prepackaged solutions for applications requiring single or dual channel controllers. All systems are fitted with UNITROL® 1020 FULL as a standard device, leveraging the best solution for optimum price and flexible project adjustment constraints.

Following rapid transition towards standard applications, the solution is gathering all features needed for an excitation system. The prepackaged solution allows you to design your excitation system in the most flexible and cost oriented way.
